Compressor wash systems are designed to clean gas turbine compressor blades. HEINMANN provides static or wheeled portable versions for hazardous or safe areas.

  • ATEX Area Wash Systems
  • Safe Area Wash Systems

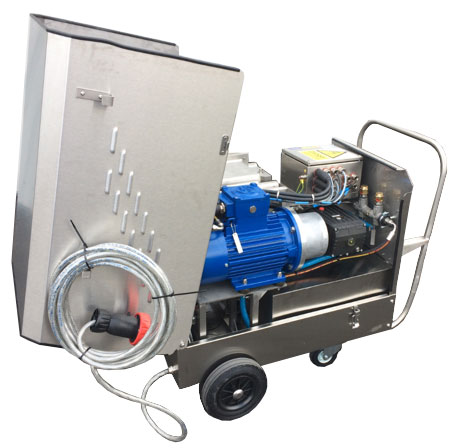

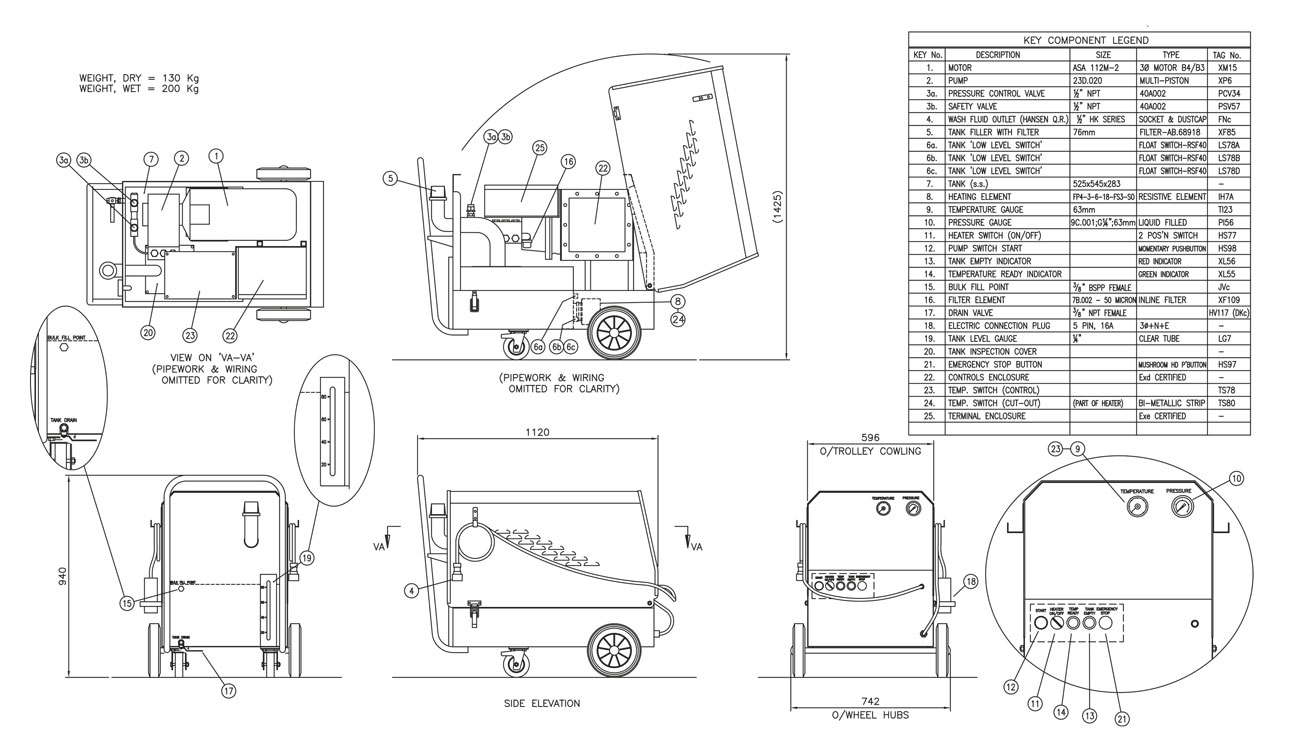

ATEX Area Wash Systems

The gas turbine water wash system is designed to clean gas turbine compressor blades by using a high-pressure hot water jet, with a maximum pressure of 150 bar. The unit is free standing and has a three phase 50 Hz or 60 Hz, 480 VAC, 4 kW motor driving a high-pressure water pump.There is also a water tank within the unit with an integrated 6 kW temperature controlled heating element.

Technical data

  • Max. power consumption: 6 kW
  • Frequency: 60 Hz
  • Motor power: 4 kW / 5.5 Hp
  • Heating elements: 6 kW
  • All electric components: IP65 or above

More information

Data Sheet

  • Static or wheeled portable versions
  • Hazardous area or safe area versions
  • Hot, high-pressure system
  • Stainless or mild steel cabinet versions
  • All wetted parts in passi-vated stainless steel
  • Self-contained

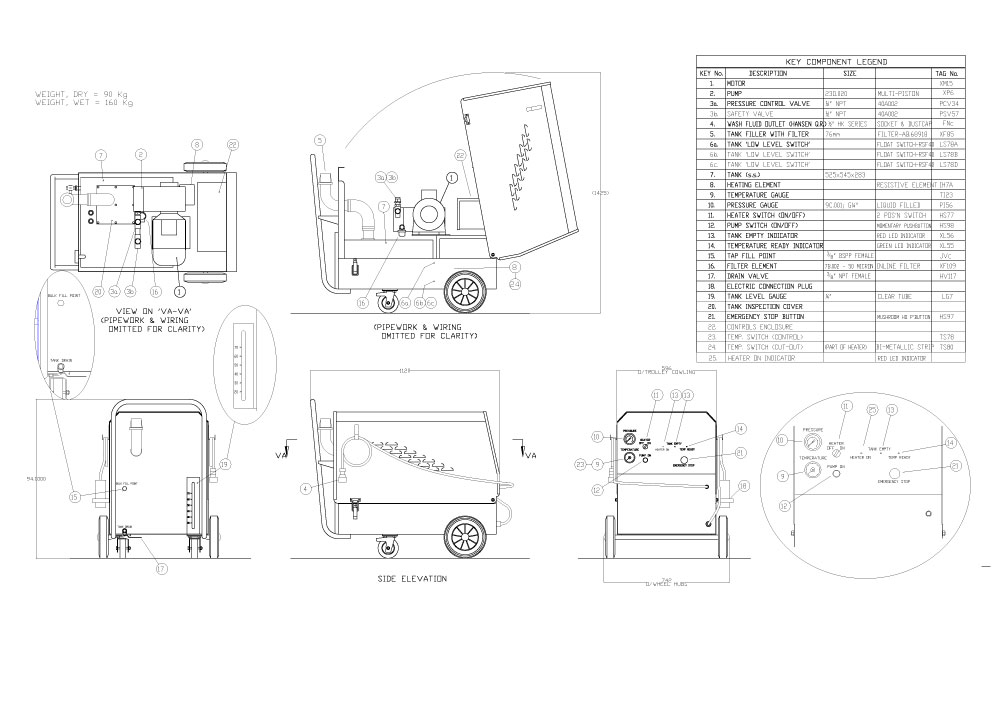

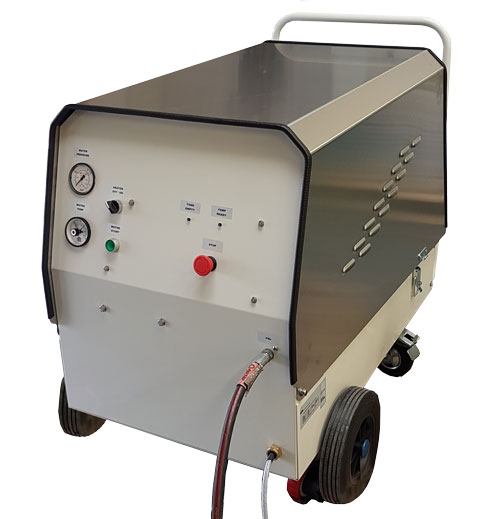

Safe Area Wash Systems

The gas turbine compressor wash system is designed to clean gas turbine compressor blades by using a high-pressure hot water jet, with a maximum pressure of 150 bar.The unit is free standing and has a three phase 50 Hz or 60 Hz, high-pressure water pump.There is also a water tank within the unit with an integrated 6 kW temperature controlled heating element.

Technical data

  • Max. power consumption: 6 kW
  • Frequency: 60 Hz
  • Motor power: 4 kW / 5.5 Hp
  • Heating element: 6 kW
  • Alle electric elements: IP65 or above

More information

Data Sheet

  • Static or wheeled portable versions
  • Hazardous area or safe area versions
  • Hot, high-pressure system
  • Stainless or mild steel cabinet versions
  • All wetted parts in passi-vated stainless steel
  • Self-contained
